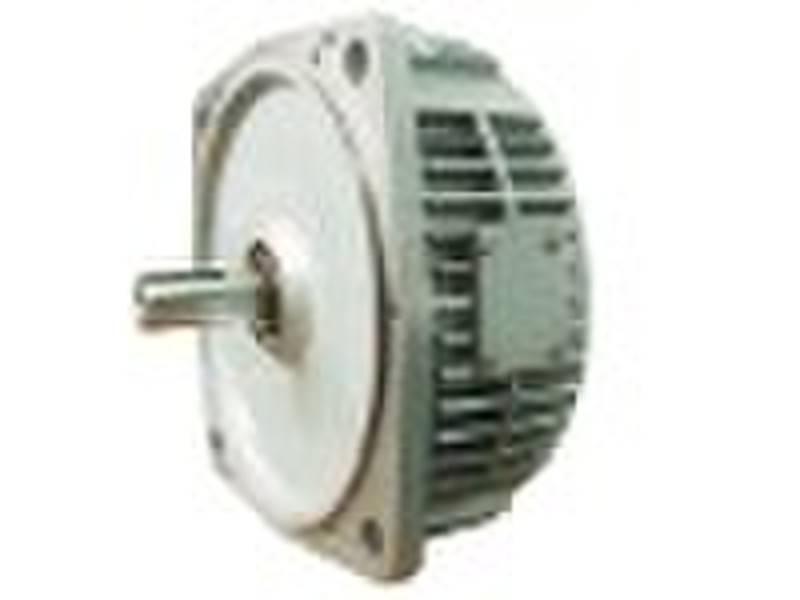

DC servo flat print motor (pancake motor)

DCservoflatprintmotorhasmanyadvantagessuchassmallaxialsize,Lowrotationinertia,goodlinearity,uniformoperation,widespeedregulationandhighefficiency.Theserieswasmadehighperformanceandreliableoperationandhasbeenfoundawideapplicationinrobot,machiningcenter,numericalcontrolmachinetools,cigarettemakingmachine,auto-weldingmachine,coilwindingmachineandmodernhighaccuratevariablespeeddrivesystemsuchasnavigation,tracking,artilleryandradar,etc.DCservoprintmotorconnectedwithdifferenttypesoftachogeneratororphotoelectriccoder,canbeconstitutedofaclosedcontrolcircuit. Type Rated power (kw) Rated speed (rpm) Max Speed (rpm) Rated torque (N.cm) Rated current (A) Rated voltage (V) 185SN01 0.4 3500 5000 110 4.5 125 195SN01 0.7 3000 5000 223 9.5 88 210SN07 0.75 3000 5000 239 8.3 107 210SN08 0.8 3000 5000 255 10.7 90 210SN10A 1.0 3000 5000 320 7.5 168 210SN10 1.0 3000 5000 320 14.6 90 210SN11 1.1 3000 5000 480 10.4 174 300SN21 2.1 3000 5000 670 12.8 190 300SN22 2.25 3000 5000 700 14.8 172 300SN30 3.0 3000 5000 990 24.3 138 300SN30A 3.1 3000 5000 1434 33.6 150 300SN45 4.5 3000 5000 1434 33.6 150 Theperformancedataoftacho Outputvoltage gradient (v/kr.min-1) Asymmetryof outputvoltage Ripple coefficient Min.load Resistrance (KΩ) Linear error Errorof temp. Variation Max. Speed (r/min) ≥6.0 ≤1.5% ≤3% 10 ≤0.3% ≤0.5% 4000 ≥3.0 ≤1.5% ≤3% 10 ≤0.3% ≤0.5% 4000 ≥5.0 ≤1.5% ≤3% 10 ≤0.3% ≤0.5% 4000 ≥7.0 ≤1.5% ≤3% 10 ≤0.3% ≤0.5% 4000
