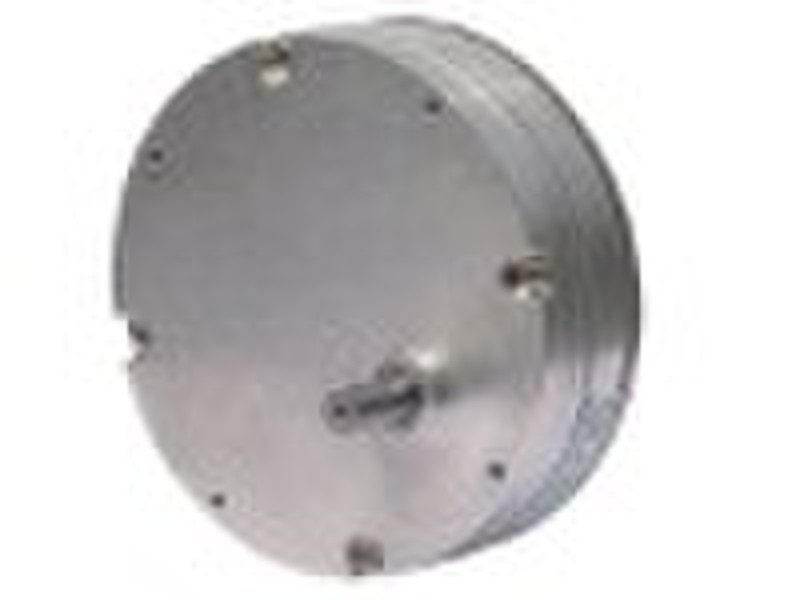

DC servo gear print motor (pacake motor DC flat m
Jessica Qin
Contact person
Basic Information
Highoverloadcapability,highefficiency,smallvolume,stablerunningandlownoise,allofthesecharacteristicsareguaranteedbytheoptimizationdesign,dependabletechniqueandproduction.TheDCservogearprintmotorhasbeenwidelyusedinpetrochemicalindustry,lightindustry,textileindustry,printinganddyeing,rubberandplasticsindustry,andmedicalappliances,etc.Itcanbeconnectedwithdifferenttypeswithdifferenttypesoftachoorencoder. Type RatedSpeed (rpm) RatedTorque(N.cm) RatedCurrent (A) RatedVoltage (V) Ratio 9FG/15:1 208 110 5.2 12.4 15:1 9FG/25:1 125 190 5.2 12.4 25:1 9FG/50:1 60 380 5.2 12.4 50:1 9FG/80:1 38 600 5.2 12.4 80:1 9FG/100:1 31 670 5.2 12.2 100:1 9FG/150:1 21 670 3.7 10.9 150:1 12FG/15:1 189 350 6.9 21 15:1 12FG/25:1 121 540 6.9 21 25:1 12FG/50:1 60 1100 6.9 21 50:1 12FG/80:1 36 1750 6.9 21 80:1 12FG/100:1 30 2110 6.9 21 100:1 12FG/150:1 21 2260 5.2 19.2 150:1 9FG Series Outline Drawing 12FG Series Outline Drawing
Delivery terms and packaging
Packaging Detail: carton box, wooden case. They are suitable for the air&sea shipment. Delivery Detail: 2-4 weeks
Port: China port
